Testing a car relay with a multimeter is an essential skill for any car enthusiast or DIY mechanic. Relays are crucial components within a vehicle’s electrical system, allowing low-power signals to control high-power circuits. If you are experiencing issues with your vehicle’s electrical components, knowing how to test a relay can help you diagnose the problem effectively. This article provides a comprehensive, step-by-step guide on how to test a car relay using a multimeter.

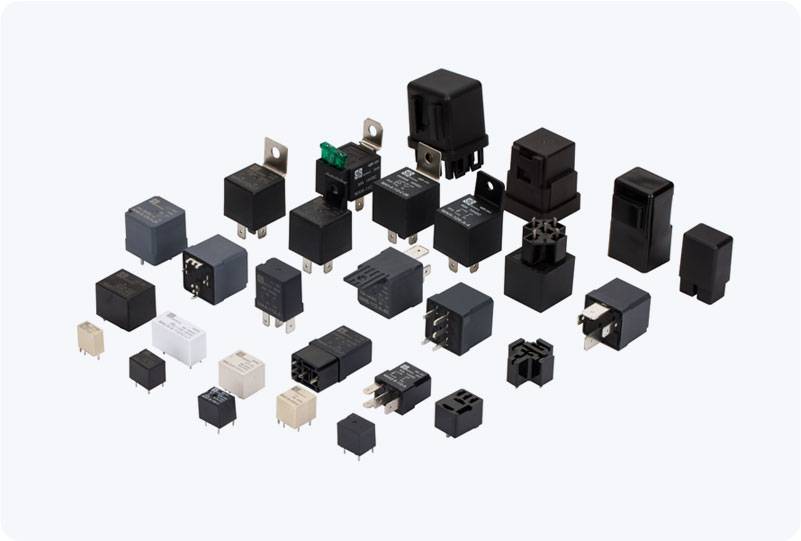

Understanding Car Relays Before diving into testing methods, it’s important to understand what a relay does. A relay is an electromechanical switch that uses an electromagnet to open or close a circuit. When the coil of the relay receives a small voltage, it creates a magnetic field that moves a lever, allowing a larger current to flow through the output circuit. This mechanism is commonly found in applications such as headlights, fuel pumps, and HVAC systems. Tools Required To test a car relay, you will need： A digital multimeter (DMM) A 12V power source (typically the car battery)
