A 12V relay is a type of electromagnetic switch commonly used in various electrical and electronic systems. It plays an essential role in controlling circuits by using a small amount of electrical power to control larger power systems. Widely used in automotive, industrial, and home appliance applications, 12V relays offer reliability, efficiency, and cost-effectiveness. This article explores the working principle, structure, types, and common applications of 12V relays.

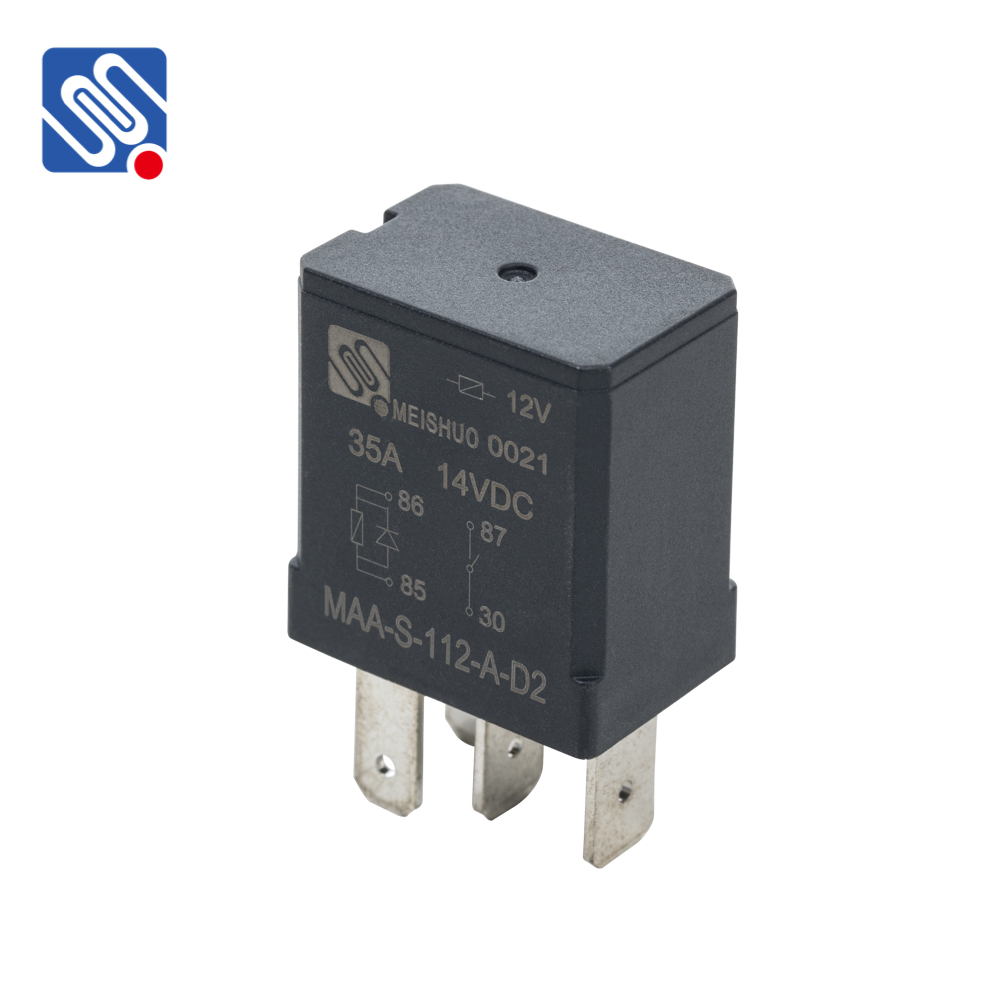

What is a 12V Relay? A 12V relay is a type of relay that operates with a 12-volt control signal. Relays, in general, are switches that allow you to control a circuit by opening and closing contacts in response to an external electrical signal. These switches are used to control larger currents and voltages than what is required to activate the relay itself. The 12V relay, specifically, is activated by applying a 12-volt signal to the coil, which generates a magnetic field and operates the internal contacts to switch the load circuit. The Working Principle of a 12V Relay The operation of a 12V relay is relatively straightforward. The key components of a relay are the coil, armature, and the contacts. When the relay coil is energized with a 12V DC voltage, it generates a magnetic field that attracts a metal armature. This mechanical action causes the relay’s switch contacts to change their state, either closing or opening, depending on the type of relay. Once the 12V signal is turned off, the magnetic field collapses, and the armature returns to its original position, restoring the relay to its default state.
