Pneumatic actuators are vital components in many industrial applications, utilizing compressed air to produce mechanical motion. Their design is rooted in the principles of fluid mechanics, allowing them to convert the energy stored in compressed air into linear or rotary movement. This article delves into the working mechanisms, advantages, disadvantages, and common applications of pneumatic actuators, providing a comprehensive overview of their role in modern automation.
Working Mechanism

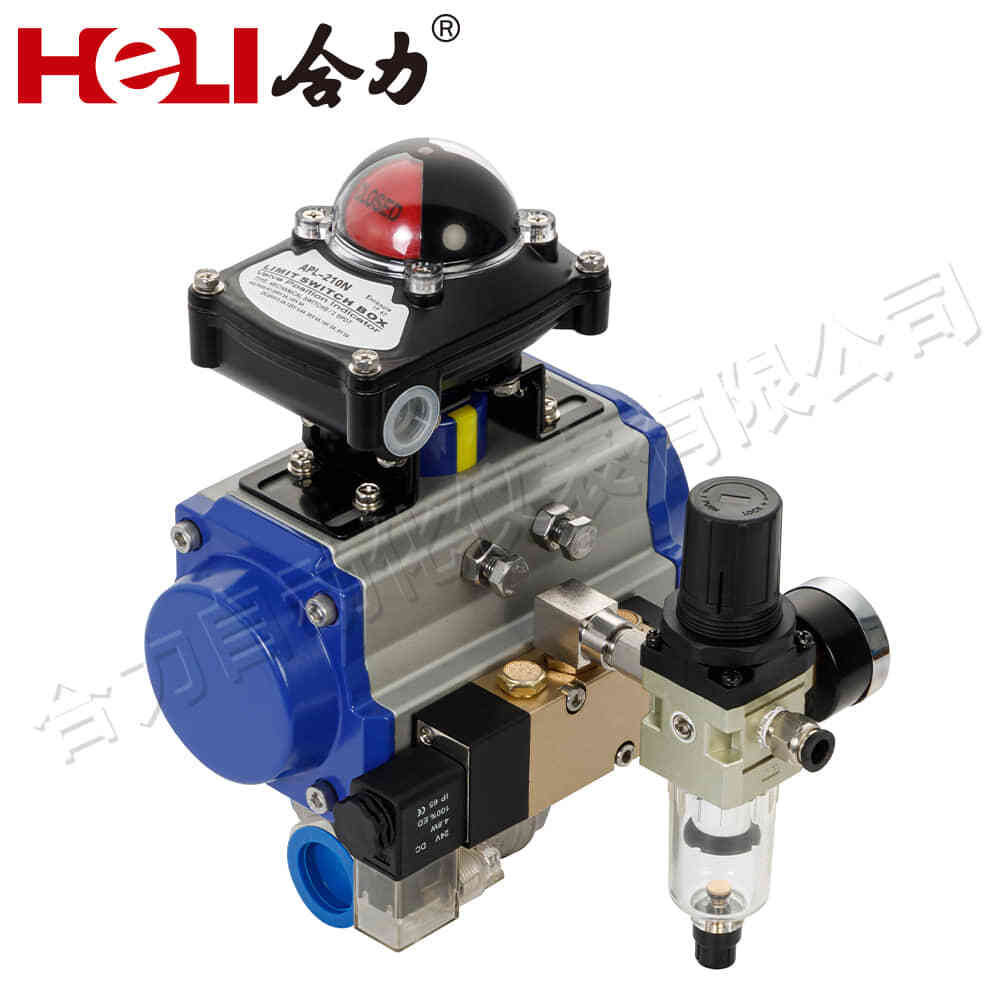

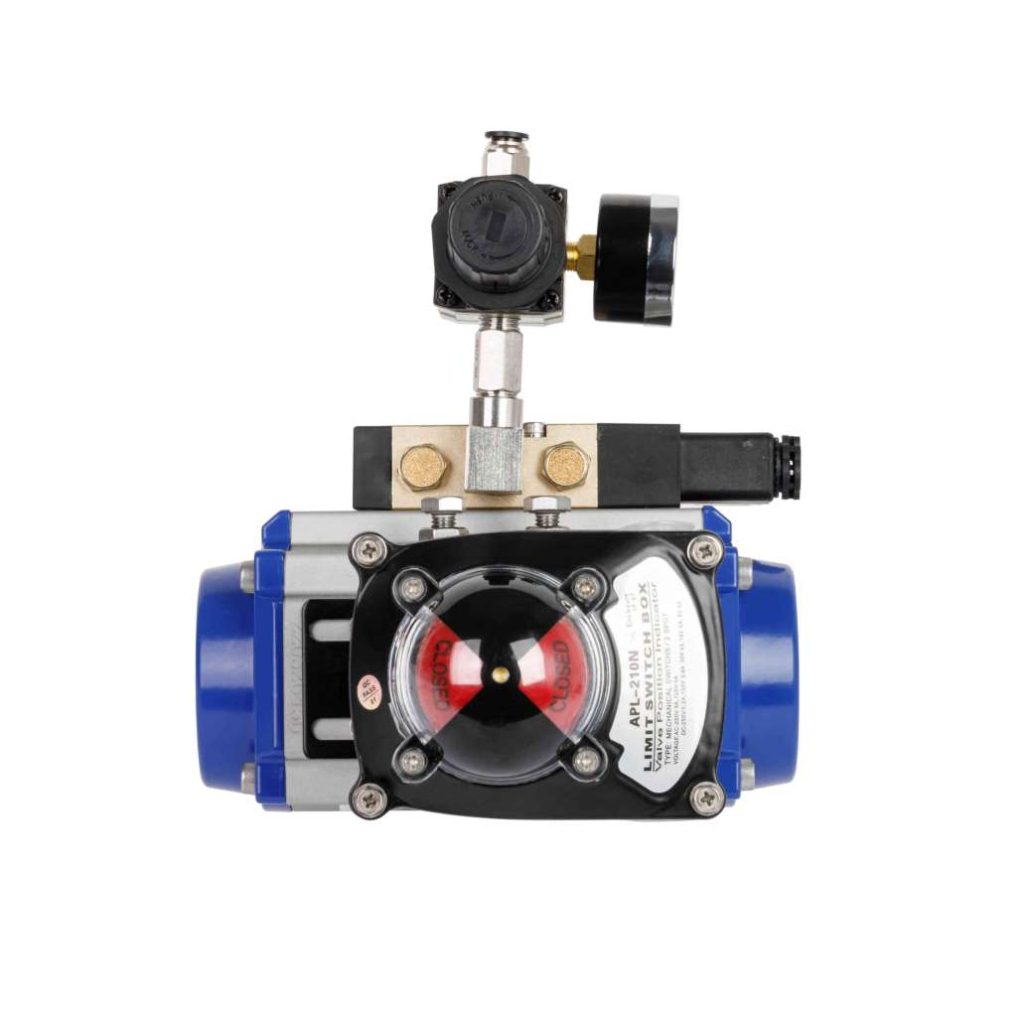

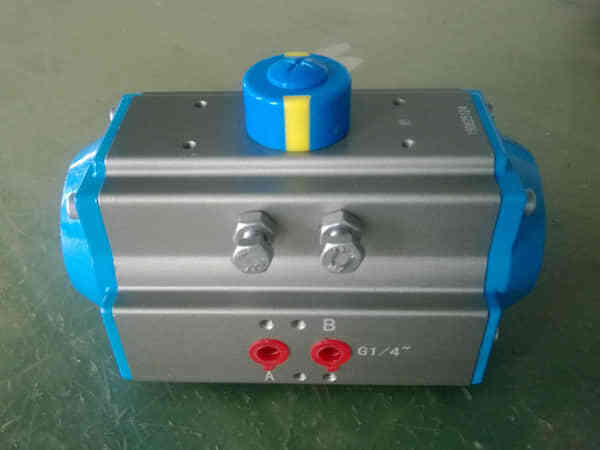

Pneumatic actuators operate on a straightforward principle. Compressed air enters the actuator through an inlet valve, creating pressure that pushes against a diaphragm or piston. This pressure differential generates movement—either linear, as in a cylinder, or rotary, as in a vane actuator. The actuator’s design often includes features such as cushioning to reduce impact during motion and limit switches for precise positioning. Additionally, control systems, such as solenoid valves, manage the airflow, ensuring accurate operation based on the requirements of the process. Advantages of Pneumatic Actuators
