understanding pneumatic ball valves: functionality, advantages, and applications

Pneumatic ball valves are vital components in various industrial applications, serving as a critical control mechanism for the movement of fluids in a system. These valves utilize compressed air to operate a mechanism that can open and close, thereby regulating flow rates efficiently and effectively. This article delves into the workings of pneumatic ball valves, their advantages, and the diverse applications in which they are utilized.

Functionality of Pneumatic Ball Valves

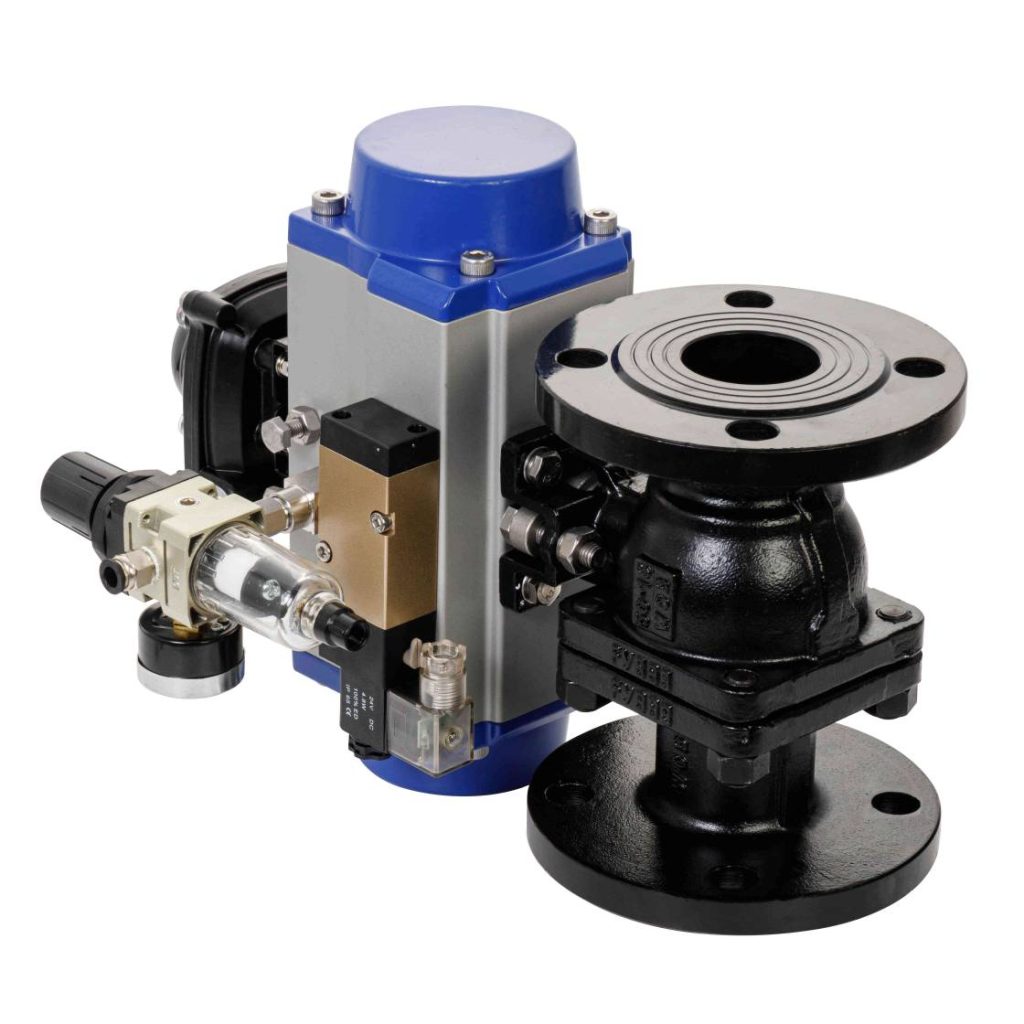

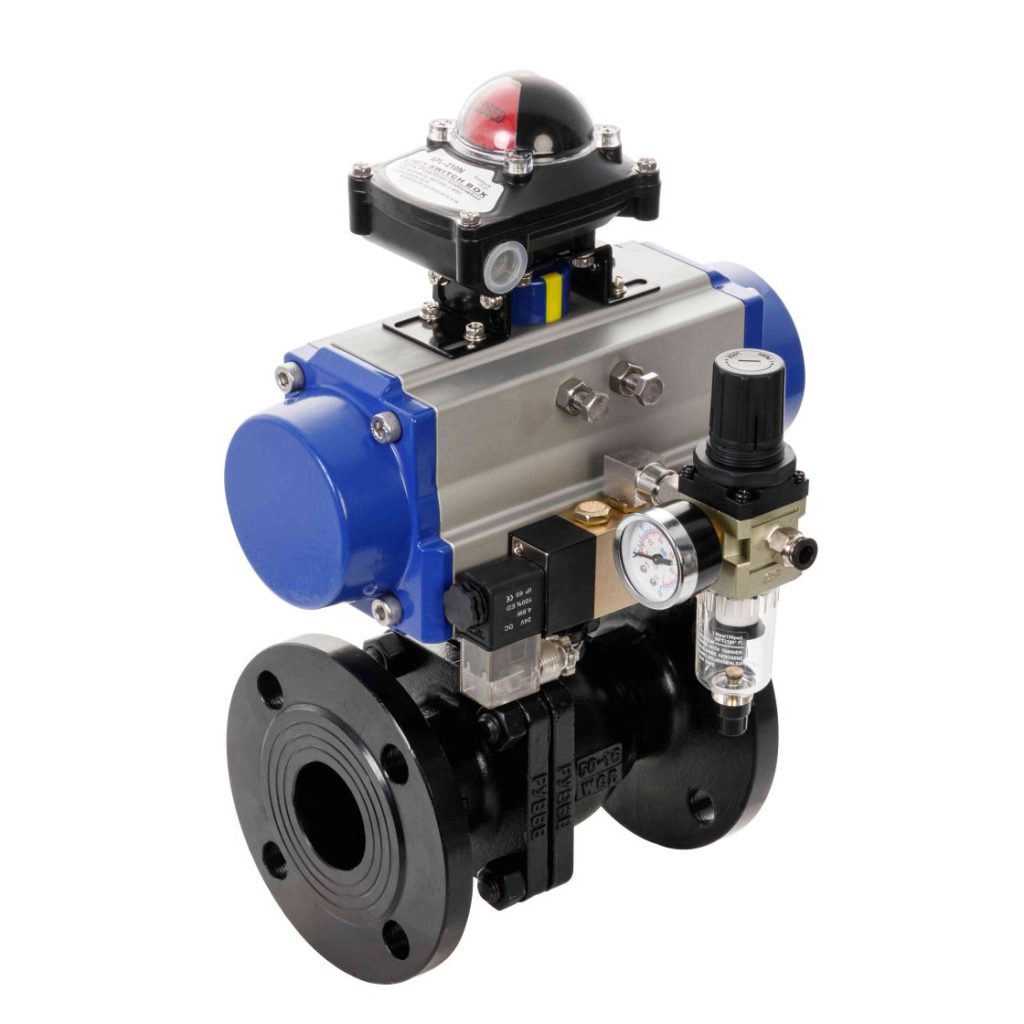

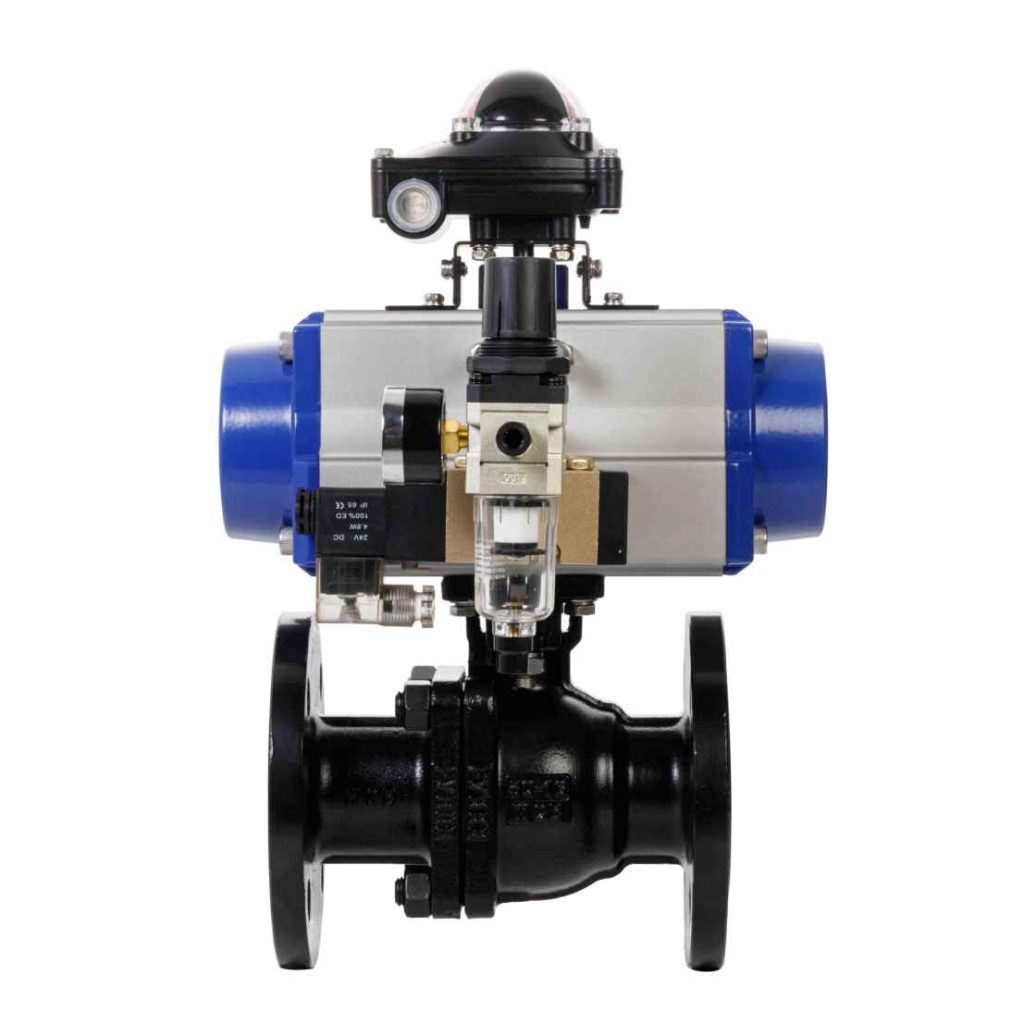

A pneumatic ball valve consists of a hollow, perforated sphere (the ball) that pivots around an axis inside a valve body. The ball’s orientation dictates whether the valve is open or closed. When the ball’s hole is aligned with the flow path, the valve is considered open, allowing fluid or gas to pass through. Conversely, when the ball is rotated 90 degrees, the hole is perpendicular to the flow path, effectively blocking the passage and closing the valve. The pneumatic aspect of the valve comes into play with the use of compressed air to operate it. An actuator, connected to the valve, receives compressed air, causing the ball to rotate. This actuation can be accomplished through various methods, which include single-acting and double-acting actuators. In single-acting actuators, the valve is spring-returned, meaning it only needs air pressure to open, while it remains closed when pressure is released. Double-acting actuators require air pressure to open and close the valve, allowing for more precise control over flow.
