The 220V AC relay is a versatile and essential component in various electrical and electronic systems. As a crucial part of circuit control, it plays a significant role in enhancing the efficiency and safety of high-voltage applications. This article explores the functionality, construction, operating principles, and diverse applications of 220V AC relays.

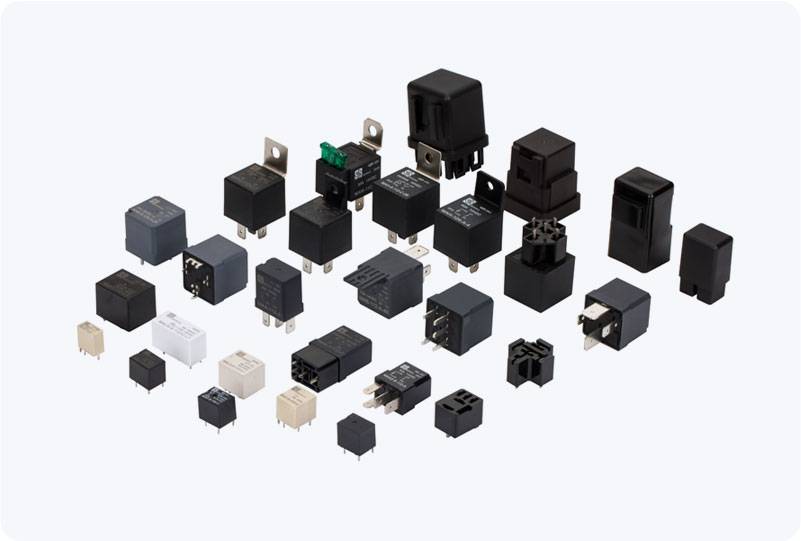

What is a 220V AC Relay? A relay is an electromechanical switch that uses an electromagnetic coil to control the opening and closing of contacts in an electrical circuit. The 220V AC relay is designed specifically for use with 220-volt alternating current (AC) systems, allowing low-voltage signals to control high-voltage loads. This makes it an indispensable tool in many industries, from home appliances to industrial automation. Construction of a 220V AC Relay The basic components of a 220V AC relay include: Electromagnetic Coil: This coil is activated when an electrical current passes through it. The magnetic field generated by the coil attracts an armature to move and operate the contacts.
