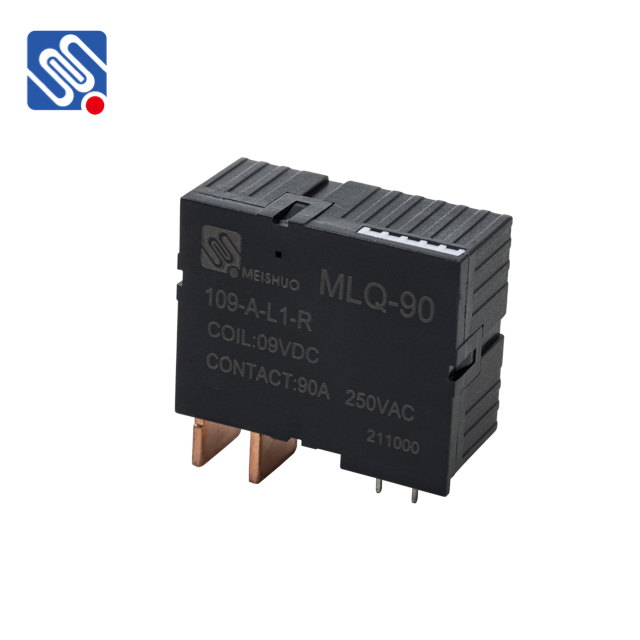

Bistable relays, also known as latching relays, are gaining prominence in modern electrical systems due to their unique switching capabilities and energy-efficient operation. Unlike traditional relays that require a continuous power supply to maintain their state, bistable relays can remain in one of their two stable states (either ON or OFF) without the need for ongoing electricity. This feature not only reduces energy consumption but also enhances system reliability, making bistable relays a compelling choice in various applications.
The Mechanism Behind Bistable Relays At the core of a bistable relay’s functionality is its magnetic circuit, which can be manipulated to switch between two stable states. The relay consists of an electromagnetic coil, a movable armature, and two sets of contacts. When a pulse is applied to the coil, it generates a magnetic field that moves the armature, allowing it to connect to either one of the two sets of contacts. Each pulse toggles the relay’s state, making it a simple and efficient switching device. What distinguishes a bistable relay from a traditional relay is its ability to retain its last state without requiring constant power. This characteristic is facilitated by its design, which uses mechanisms such as detents or springs to maintain the armature’s position even when the coil is de-energized. As a result, bistable relays can reduce energy costs significantly in applications that would otherwise keep relays in a continuous energized state.
